Cases - GZ Roll-forming

Location：Home > Cases > Tube(Square Tube/Pipe/Special-shaped Tubes)Machine

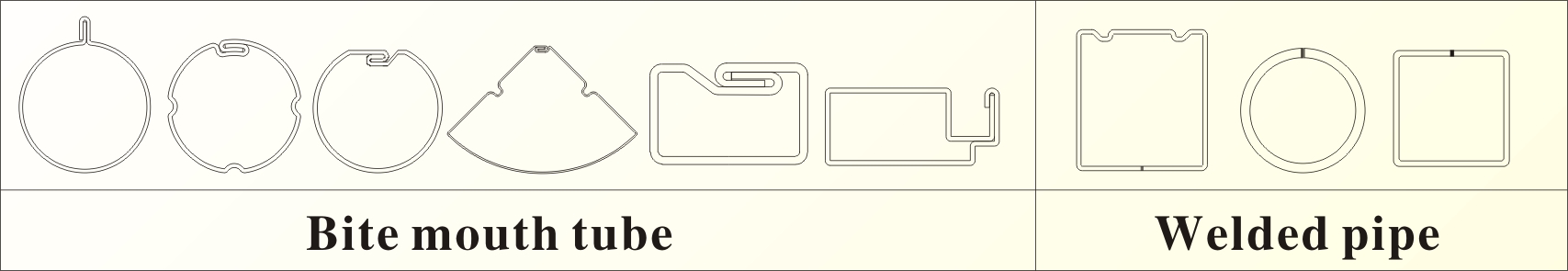

Tube(Square Tube/Pipe/Special-shaped Tubes)Machine

The equipment made according to request of customer type tube, our factory has design and manufacture all kinds of complex cross section shape of the tube forming equipment, can according to the requirements of section increase punching, welding, polishing process, made into a whole automatic control production line, can produce various specifications of products, product length is adjustable. The product formula and production can be set on the touch screen, man-machine interactive interface, without mechanical adjustment, PLC, frequency converter and other major electrical components adopt Germany or Japan imported brand, to ensure the long-term stability of the equipment performance.

Detailed Introduction

Technical Data:

Molding material

Number of Forming

Production speed

Cut off the way

Production quality

Run environment

3mm Manufacture, galvanized sheet, aluminum alloy, stainless steel

16 stands

6 m/min

Hydraulic cutting

Straightness: L, 2000 mm or less, bend the 2 mm or less; Immunity 2 ° or less No fold, uneven surface, such as scratch defect Product section size and hole size meet the requirements of customers drawings or national standard

380V±10% / 50Hz/30KW

Molding material

3mm Manufacture, galvanized sheet, aluminum alloy, stainless steel

Number of Forming

16 stands

Production speed

6 m/min

Cut off the way

Hydraulic fixed-length cutting

Production quality

Straightness: L, 2000 mm or less, bend the 2 mm or less; Immunity 2 ° or less No fold, uneven surface, such as scratch defect Product section size and hole size meet the requirements of customers drawings or national standard

Run environment

380V±10% / 50Hz /30KW

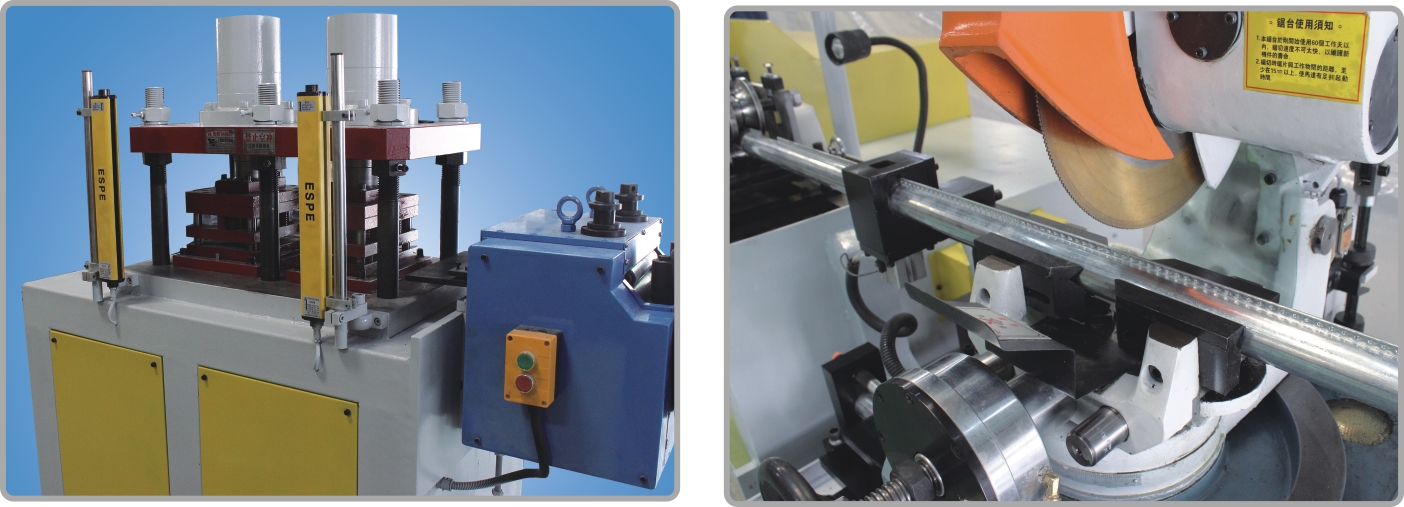

Punching institutions
Saw blade to cut off the agency
